Fixed and Operable Fire Windows

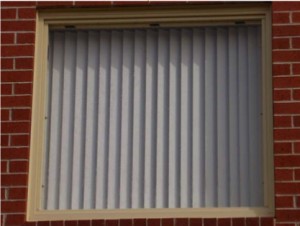

Stopline Fixed Fire Windows can span large openings to provide minimal disruption to views.

The system is supplied with 6mm thick Pyro Swiss Extra fire resistant glass. Pyro Swiss Extra provides maximum transparency, allowing it to integrate perfectly alongside non-fire glass. Pyro Swiss Extra is manufactured by Vetrotech/St Gobain, one of the world’s oldest and most respected glass companies. Pyroswiss Extra can be combined with other St Gobain glasses to form double glazed units for solar control, low-emissivity or enhanced thermal insulation.

The galvanised steel framing system is coated both internally and externally to ensure long lasting corrosion protection. The profiles are available in a range of sizes. The standard frame profile is a slimline 50mm x 35mm section which is the most slimline system available on the market. When incorporating doors or open able windows a larger frame profile is required.

Stopline Fixed Fire Windows comply in full with the requirements of the Building Code of Australia and have been incorporated in many projects across Australia.

For Full Lifecycle Service Fixed and Operable Fire Windows Fire Windows

• Fire ratings up to 2 hours
• Slimline framing 50 x 35mm
• Available in powder coated finish
• Incorporates maximum transparency clear fire rated Pyroswiss Extra
• Pyroswiss Extra is a Class A Safety Glass
• Double glazed units available
• Double galvanised frame for maximum corrosion protection

Maximum total pane size is 3.6m2 and; maximum pane height: 3000mm, maximum pane width: 1200mm.

Standard sizes:
900 x 600 mm
900 x 1200 mm
900 x 1200mm
1200 x 1200mm

Autofire Automatic Closing Fire Windows can be operated on a day-to-day basis as a normal casement type window. In the event of a fire a fusible link releases at 68 degrees Celsius causing the window to close and latch.

During normal use the window is held open with a casement stay. The casement stay and latch can be supplied in various standard finishes such as Satin, Chrome and Polished Brass. Other finishes are available on request. The windows are top hinged to allow for automatic closing and do not need to be connected to the alarm system.
